Records history of TwinCapture version updates and hotfixes.

History

• Version 3.2.0; October 30, 2026

  1. Added Insta360 X6 support

     • TwinCapture now connects to and captures with the Insta360 X6. TwinCapture 3.2.0 or later and X6 firmware 1.1.7 or later are required, on both CupixWorks 4.0 and 5.0 projects.

       When the X6 connects to TwinCapture, the app applies the default capture settings automatically, so no additional camera setup is needed.

       Lens guards are not supported for capture. Remove them before every capture.

       Refer to Insta360 X6 Basic Setup only when needed, for example to keep the camera from powering off or to copy files to a computer.

  Note: CupixConnect does not support the Insta360 X6 yet. Upload X6 captures with Mobile Upload. CupixConnect support for the X6 is planned for mid-November.

• Version 3.1.2; June 2026

  1. Added Satellite View

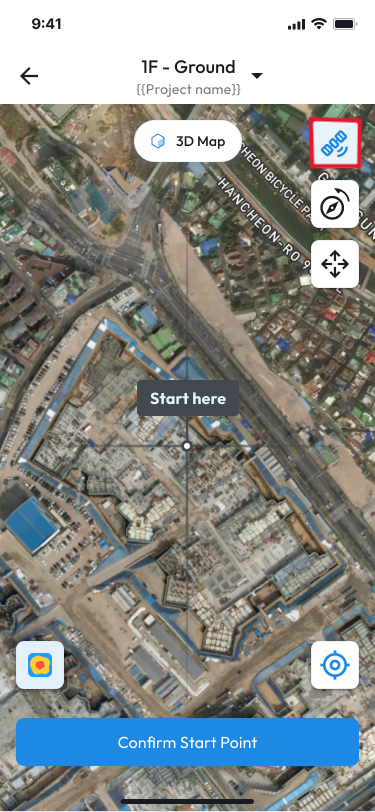

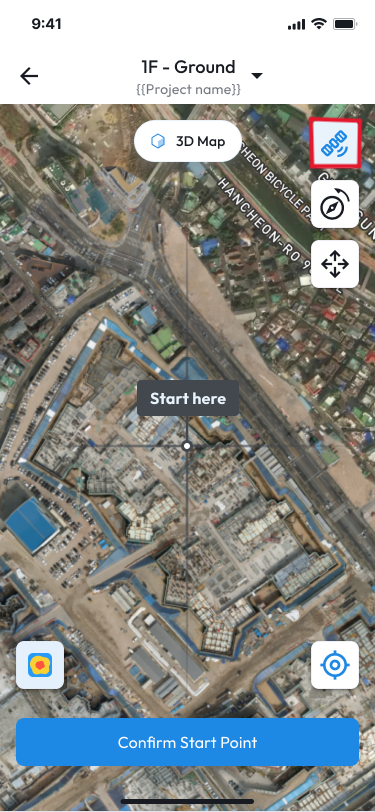

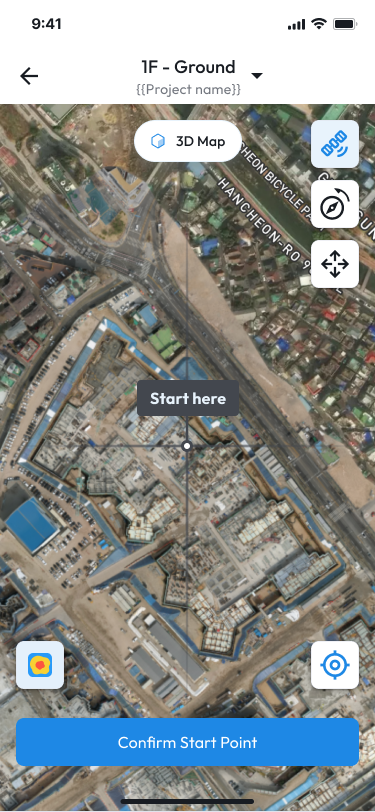

     • On the capture start screen, you can switch the base map between the floor plan and satellite imagery. Tap the map toggle at the top of the screen to view the site over satellite imagery when planning where to start a capture.



  2. Added an unsupported camera indicator

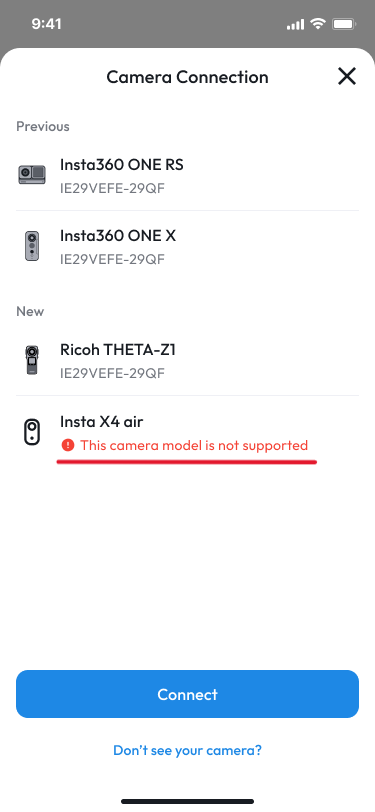

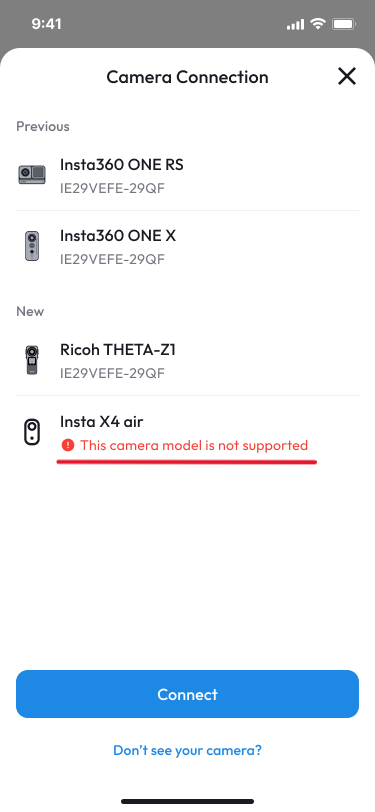

     • On the Camera Connection screen, camera models that are not supported are now marked. A red This camera model is not supported notice appears beneath the camera, and the model cannot be selected for connection.



  3. Added OmniNote Metadata Export

     • When you export an OmniNote from Activity, the exported file now includes metadata. There is no change to the export steps or screens.

     • The following metadata fields are added to the exported file:

       • omniNoteKey
       • omniNoteId
       • omniNoteTag
       • omniNoteTagId
       • captureId
       • originalFileName
       • noteSequenceNumber
       • facilityKey

  4. Updated the Insta360 X5 firmware update notice

     • The firmware update notice for the Insta360 X5 now prompts users to update to the latest firmware through the Insta360 app.

     • The notice appears only for users whose most recently used camera is the Insta360 X5 running firmware older than the latest version. It is shown when the app starts and immediately after the camera connects.

• Version 3.1.0; April 22, 2026

  1. Added Coverage Heatmap View

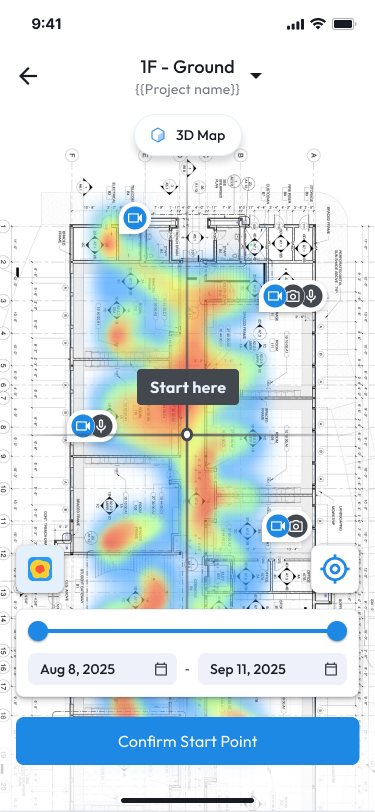

     • On the step where users confirm start point, Coverage Heatmap feature is added.



       Note:

       • Heatmap: The Coverage Heatmap displays a visual overlay on the Floorplan page showing which areas of a level have been captured.
         • Date Range: Adjust the capture date range to plan for next capture.
           • Note: On Android devices, the heatmap may not appear immediately due to a known Mapbox issue. Move the map slightly to refresh the display.

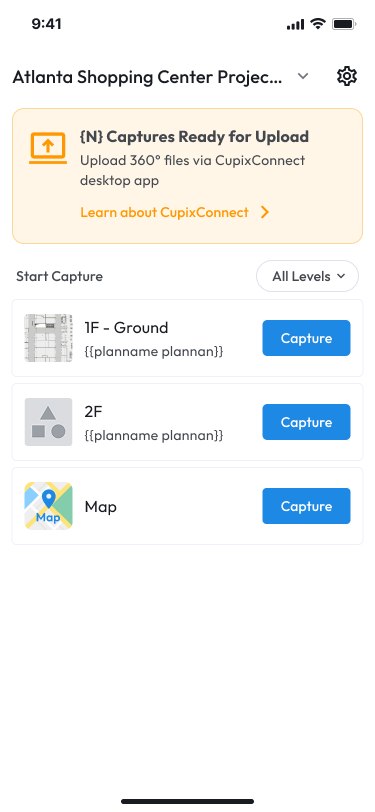

  2. Added Upload via CupixConnect Option

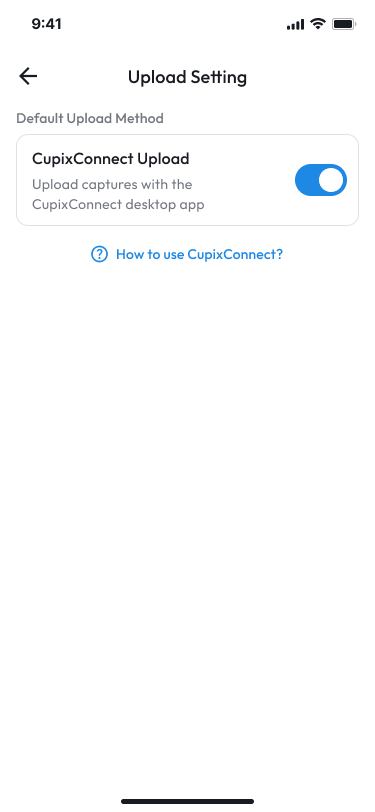

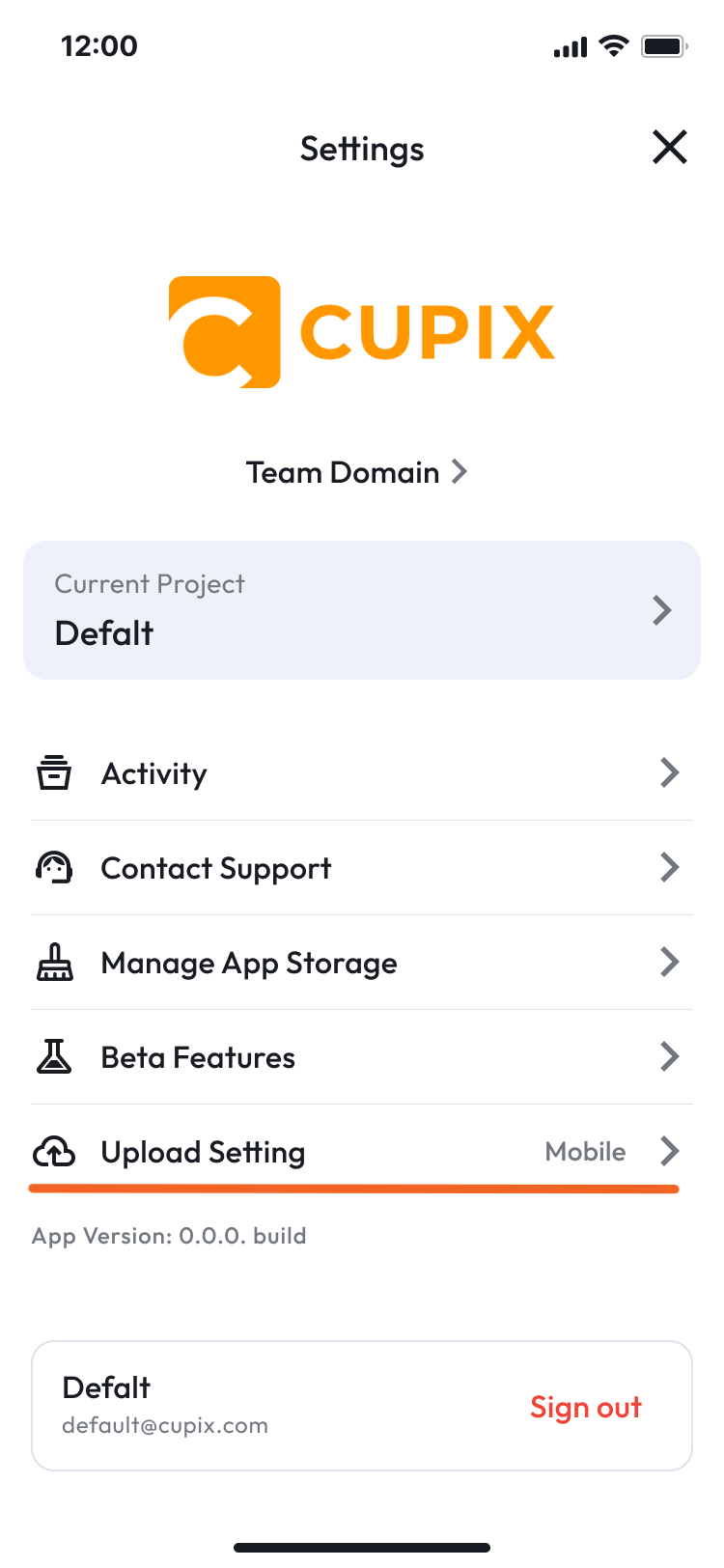

     • When Upload Setting is set to CupixConnect, the app uploads metadata only from the mobile device.



     • When capture is complete, only the metadata of captures will be uploaded. The capture data must be transferred to a desktop and uploaded using CupixConnect.



  3. Landscape mode is now supported on tablet devices (iPad, Galaxy Tab).

• Version 3.0.16; Hotfix, Mar 30, 2026

  1. Fixed an issue where Insta360 camera properties were not automatically set to Auto on iOS
  2. A warning message is displayed about X5 firmware version update, prompting users to take necessary steps to fix the issue.

• Warning Message on TwinCapture version that IS affected

⚠️ Important Notice About Your Camera

Insta360 X5 Firmware 1.10.7 has a known issue that rarely causes panoramic misalignment. In some cases, affected captures may be difficult to recover.

A fixed firmware is now available. Please download Firmware 1.11.100 from our Support Center. [Insta360 X5 Firmware Update]

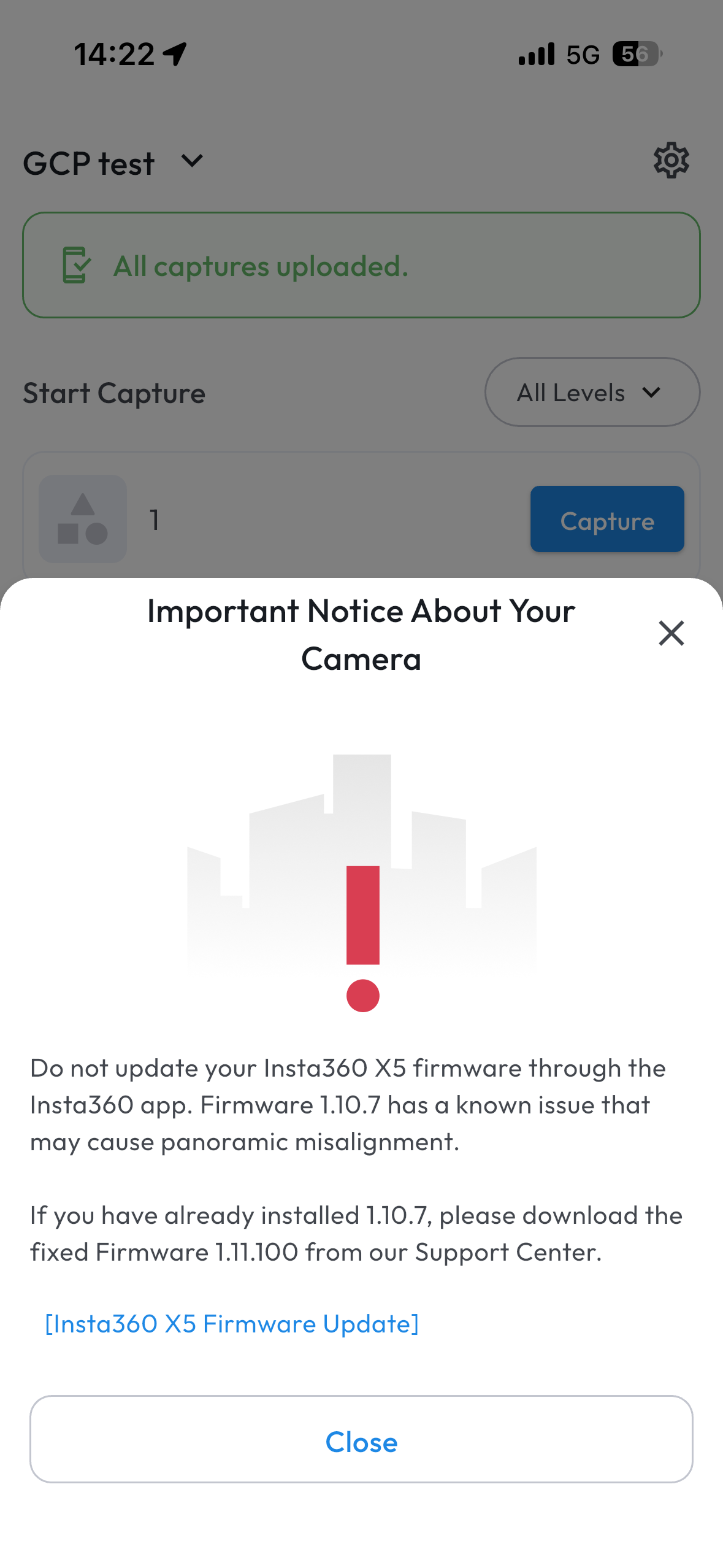

• Warning Message on TwinCapture version that is NOT affected

⚠️ Important Notice About Your Camera

Do not update your Insta360 X5 firmware through the Insta360 app. Firmware 1.10.7 has a known issue that may cause panoramic misalignment.

If you have already installed 1.10.7, please download the fixed Firmware 1.11.100 from our Support Center.[Insta360 X5 Firmware Update]
