Introduction

OmniNotes let you capture high-resolution photos and voice memos during a video capture using the TwinCapture app. These notes are automatically geotagged and integrated into SiteView, enabling you to document site conditions with precise spatial context.

They help streamline field documentation and communication by making content easy to search, organize with custom tags and captions, and reference across time and location. You can also generate PDF reports to support progress tracking when needed.

Note:

• SiteView Observers can view OmniNotes but cannot modify them. All other roles have full access.
• The OmniNote feature is not available to users with public access.

OmniNote Types: PhotoNotes and VoiceNotes

There are two types of OmniNotes you can create during capture using the TwinCapture app:

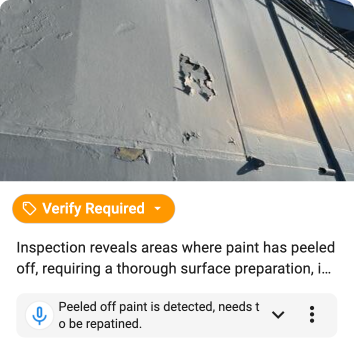

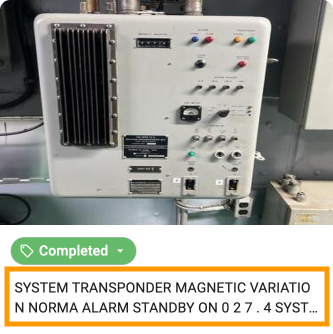

• PhotoNotes – High-resolution photos that are automatically linked to the location where they were captured in SiteView. After taking a photo, you can optionally add a voice caption, which is automatically transcribed and saved with the image.

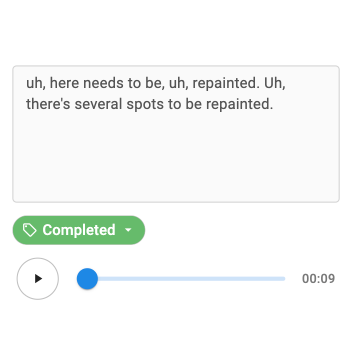

• VoiceNotes – Audio-only memos recorded during capture. These are also auto-linked to their capture location and transcribed, allowing you to search by keywords in SiteView.

Note: A caption is an optional voice description added to a PhotoNote, while a VoiceNote is an independent voice memo not tied to a photo.

Create OmniNotes During Capture

You can create PhotoNotes and VoiceNotes directly from the TwinCapture app while recording in 3D Video or 360° Video mode. OmniNotes are not available in 360° Photo mode.

Note: For more details on how to capture using the TwinCapture app, refer to the TwinCapture article.

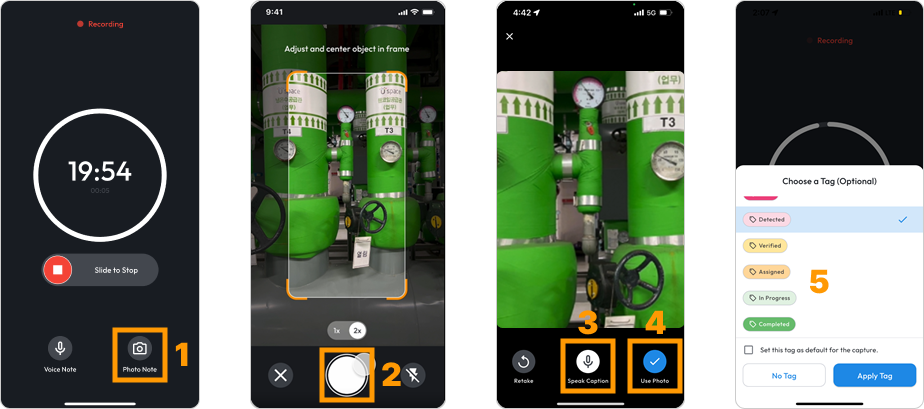

Create a PhotoNote

1. Tap PhotoNote during capture.
2. Frame the scene and take the photo.
3. (Optional) Tap Speak Caption to record a short voice caption. This will be transcribed and attached to the image.
4. Tap Use Photo to confirm.
5. (Optional) Assign a tag from the predefined tag list.

Note: PhotoNotes appear in SiteView after the capture is published. Facial and body blurring is not applied to PhotoNote images.

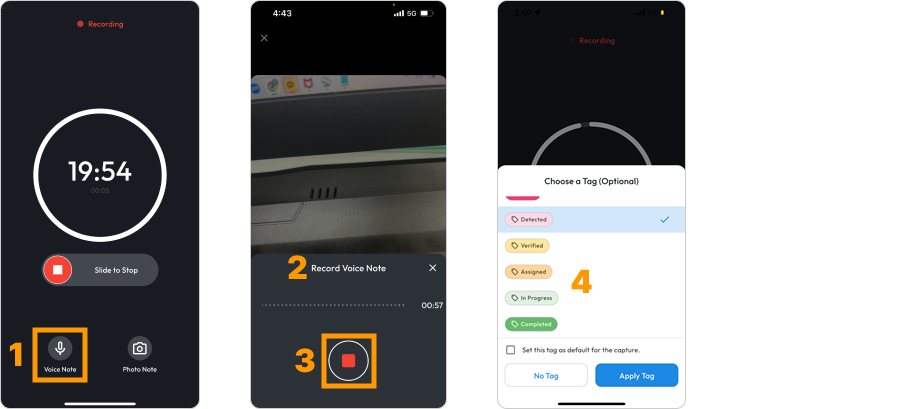

Create a VoiceNote

1. Tap the VoiceNote button during capture.
2. Record your message using your mobile device's microphone. The audio will be automatically transcribed.
3. Tap Stop to finish.
4. (Optional) Assign a tag from the predefined tag list.

Note: VoiceNotes appear in SiteView after the capture is published. Transcriptions are supported in 13 languages including English, Korean, Japanese, Chinese, German, French, and more.

Manage OmniNotes in SiteView

Access and Navigate OmniNotes

To open the OmniNotes panel, click theOmniNote icon in the left menu.

Note: The OmniNote icon appears only when the project contains at least one PhotoNote or VoiceNote. If no OmniNotes are available, the icon will not be shown.

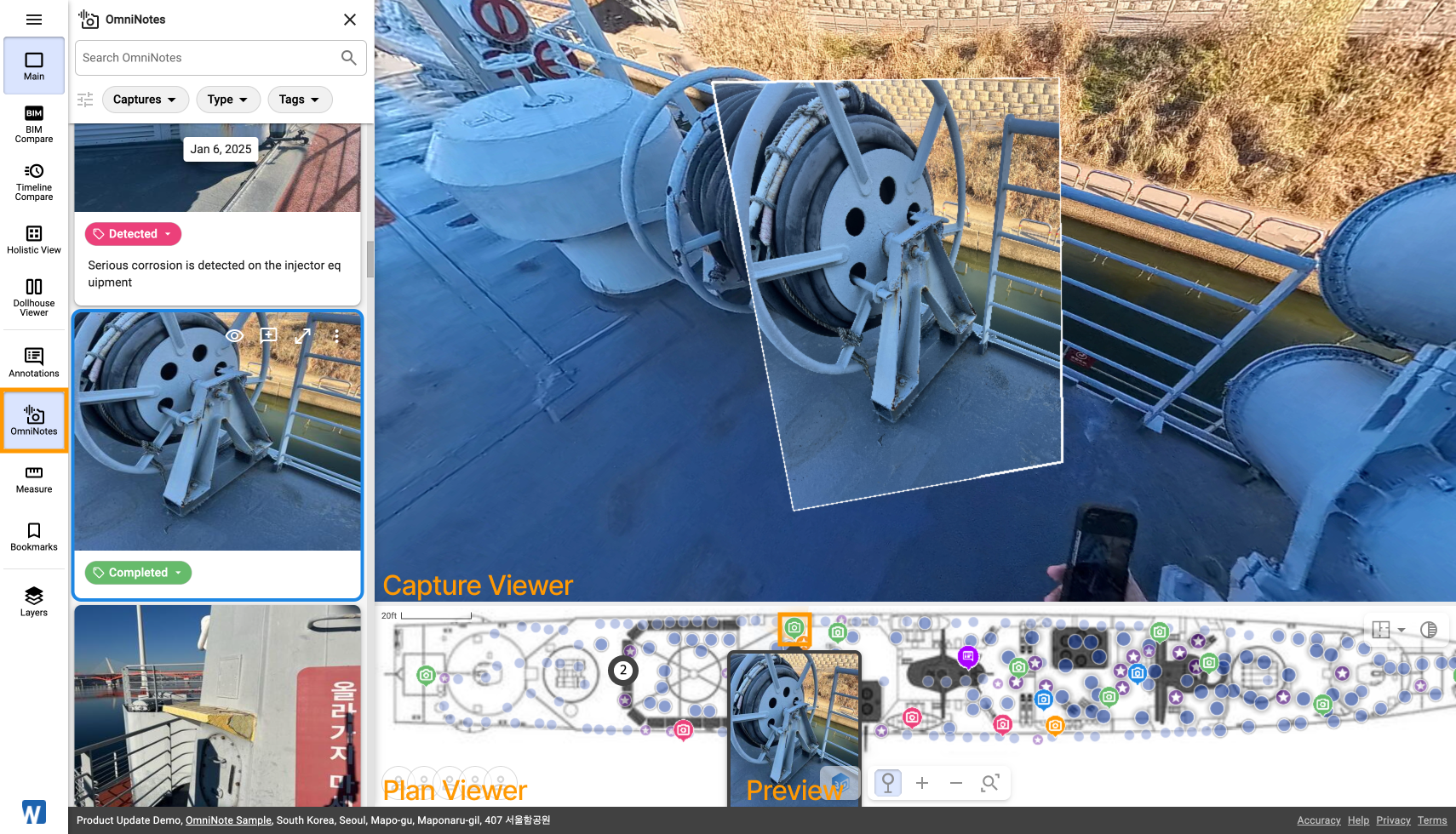

You can access and navigate OmniNotes from both the Capture Viewer and the Plan Viewer.

• When the OmniNote panel is open, the Plan Viewer appears below the Capture Viewer.
• Markers in the Plan Viewer represent OmniNote locations and are color-coded according to their tags.
  • Hover over aPhotoNote marker to preview the photo.
  • Click any marker to jump to that location in the Capture Viewer.

Search and Filter OmniNotes

Manage OmniNotes easily using the OmniNote panel.

• Use filters to narrow down by capture date, note type (PhotoNote or VoiceNote), or assigned tag.
• Use the search bar at the top of the list to find notes by keyword.

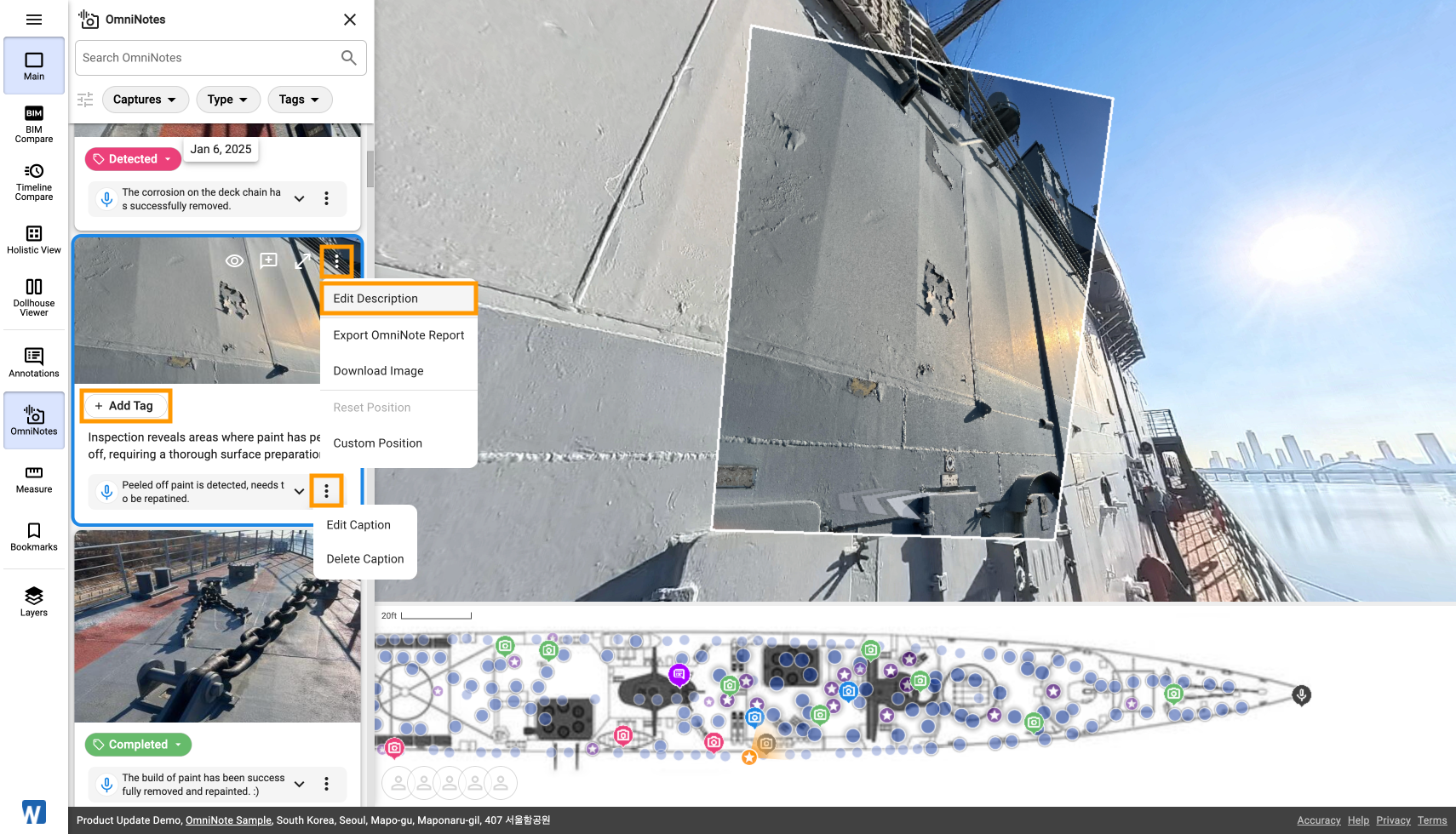

Edit OmniNotes

• Click Add Tag to apply a tag to a note. If a tag is already assigned, click it to change the selection.

  Note: OmniNote tags are configured by Team Admins in Team Settings.

• Click thethree-dot menu and select Edit Description to add or update a text description.

  Note: For PhotoNotes, text detected in the image through Optical Character Recognition (OCR) is automatically extracted and displayed as a description, which is searchable in SiteView.



• Click thethree-dot menu next to the caption to edit or delete the auto-transcribed caption of the PhotoNote.

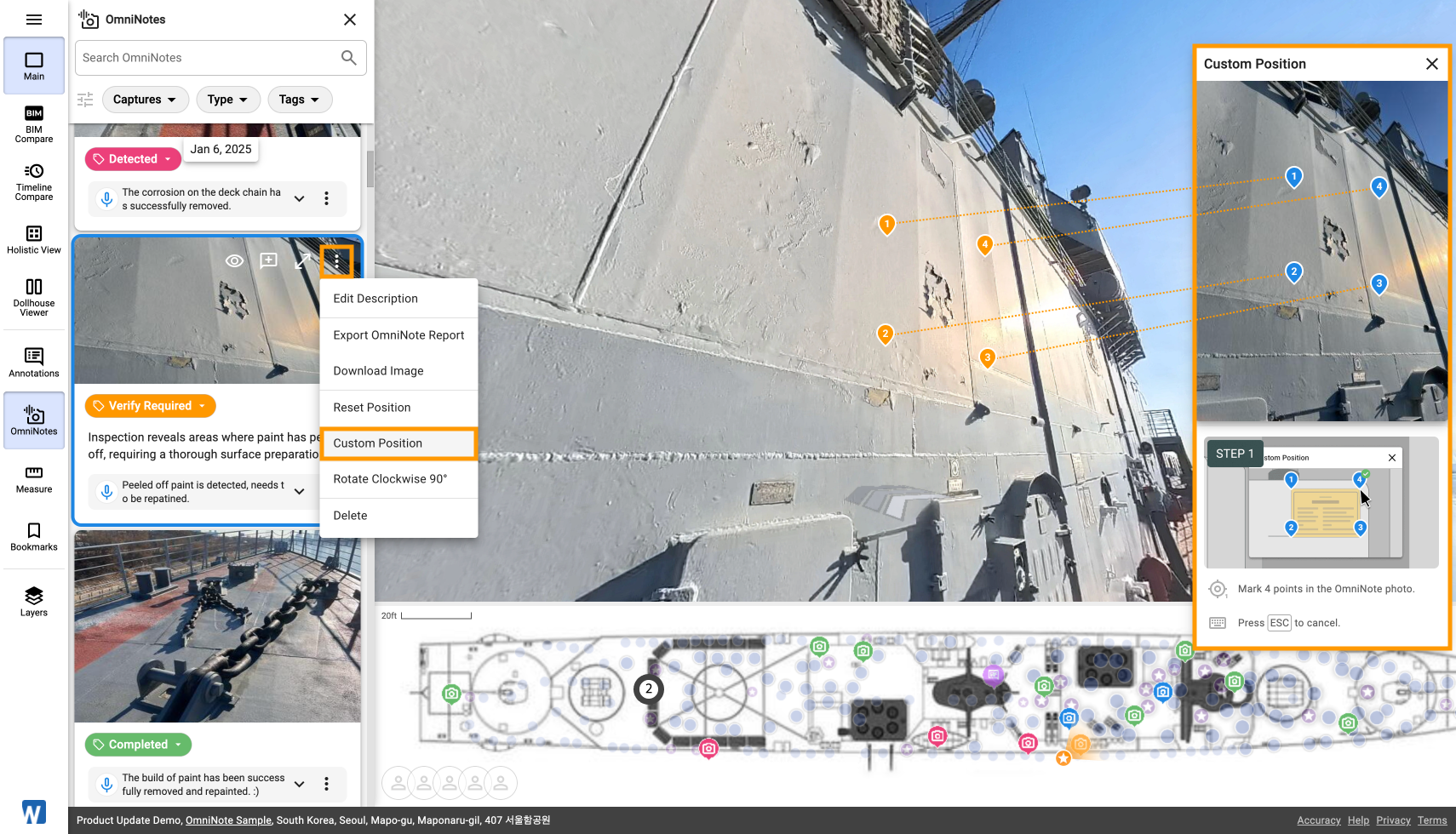

• To reposition a PhotoNote:



  1. In the PhotoNote you want to reposition, click the three-dot menu and select Custom Position.
  2. In the pop-up window, mark 4 points on the PhotoNote image.
  3. Then, mark the corresponding points in the Capture Viewer to align the position.

  Note: Only PhotoNotes can be repositioned. VoiceNotes cannot be manually relocated after capture.

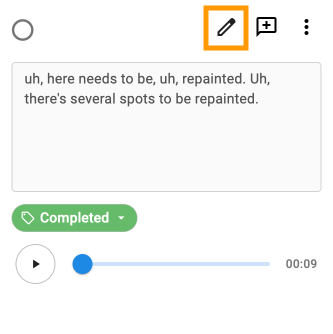

• To edit a VoiceNote transcription, click theEdit icon and update the auto-transcribed text.



Add OmniNotes to Annotations

You can enhance annotations with detailed site context by attaching OmniNotes.

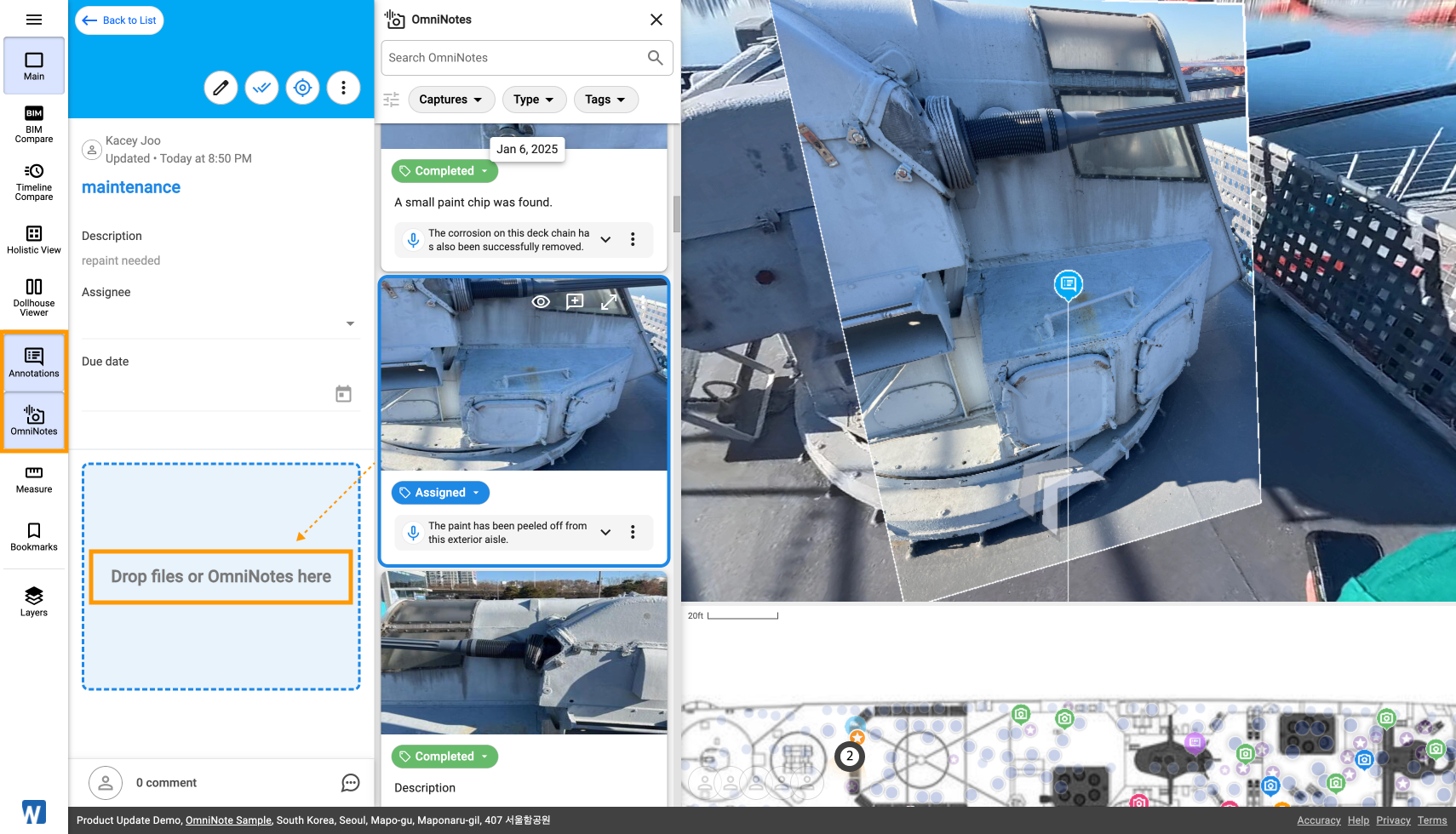

To add an OmniNote to an annotation:

1. Open theAnnotations panel alongside the OmniNotes panel.
2. Open the annotation you want to attach the OmniNote to, then drag and drop the desired OmniNote into the annotation form.

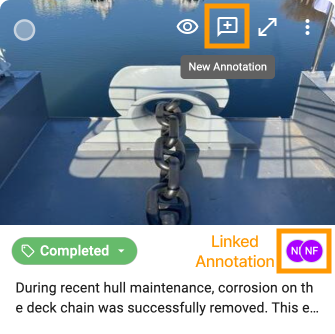

You can also create a new annotation directly from an existing OmniNote:

1. Click theNew Annotation icon on the OmniNote you want to use.
2. Complete the annotation form and click Save.

Note: If an annotation is linked to an OmniNote, hover over the right side of the OmniNote to preview or open it.

Generate OmniNote Reports

OmniNote reports provide detailed visual documentation, making it easier to track changes across dates and locations.

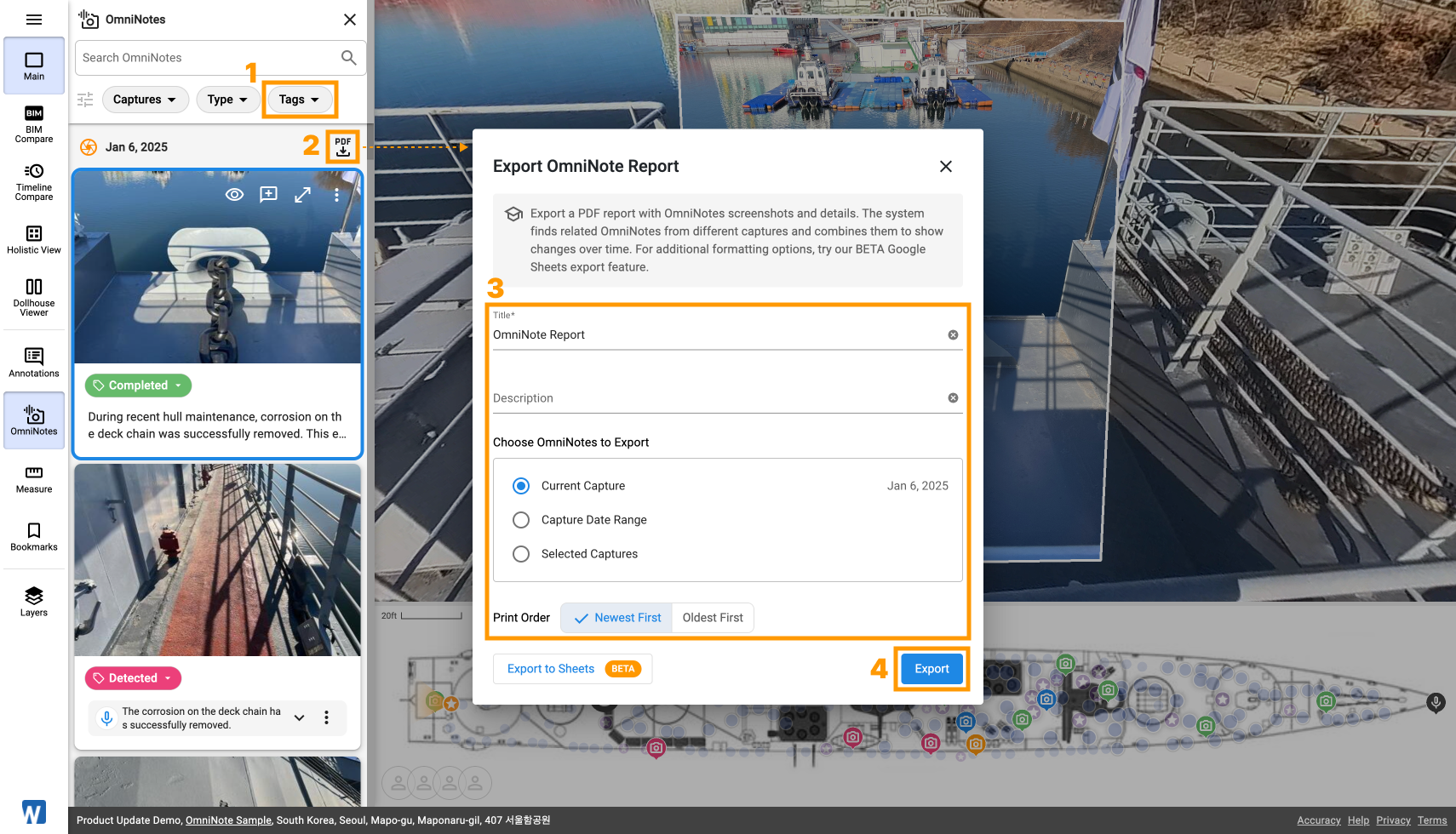

To generate a PDF report using the OmniNote Report tool:

1. (Optional) Use the Tag filter to narrow down the list.
2. Click theExport OmniNote Report button at the top right.
3. Enter a report title, then select the capture date and the print order.
4. Click Export to generate and download the report.

Note:

• If multiple OmniNotes exist at the same location from different capture dates, the report allows you to compare them and monitor changes over time.
• VoiceNotes are not included in OmniNote reports.
