Introduction

This article explains how to create projects and view them in the Project List in CupixWorks. It covers how to access projects within a workspace and how to set up key project information during creation.

Note: Available to Workspace Admins and above.

Project List and Profile

The project list and profile views have been updated to include the newly added fields, supporting improved tracking, filtering, and project visibility.

Note: Refer to the Project Types article for details on managing project types.

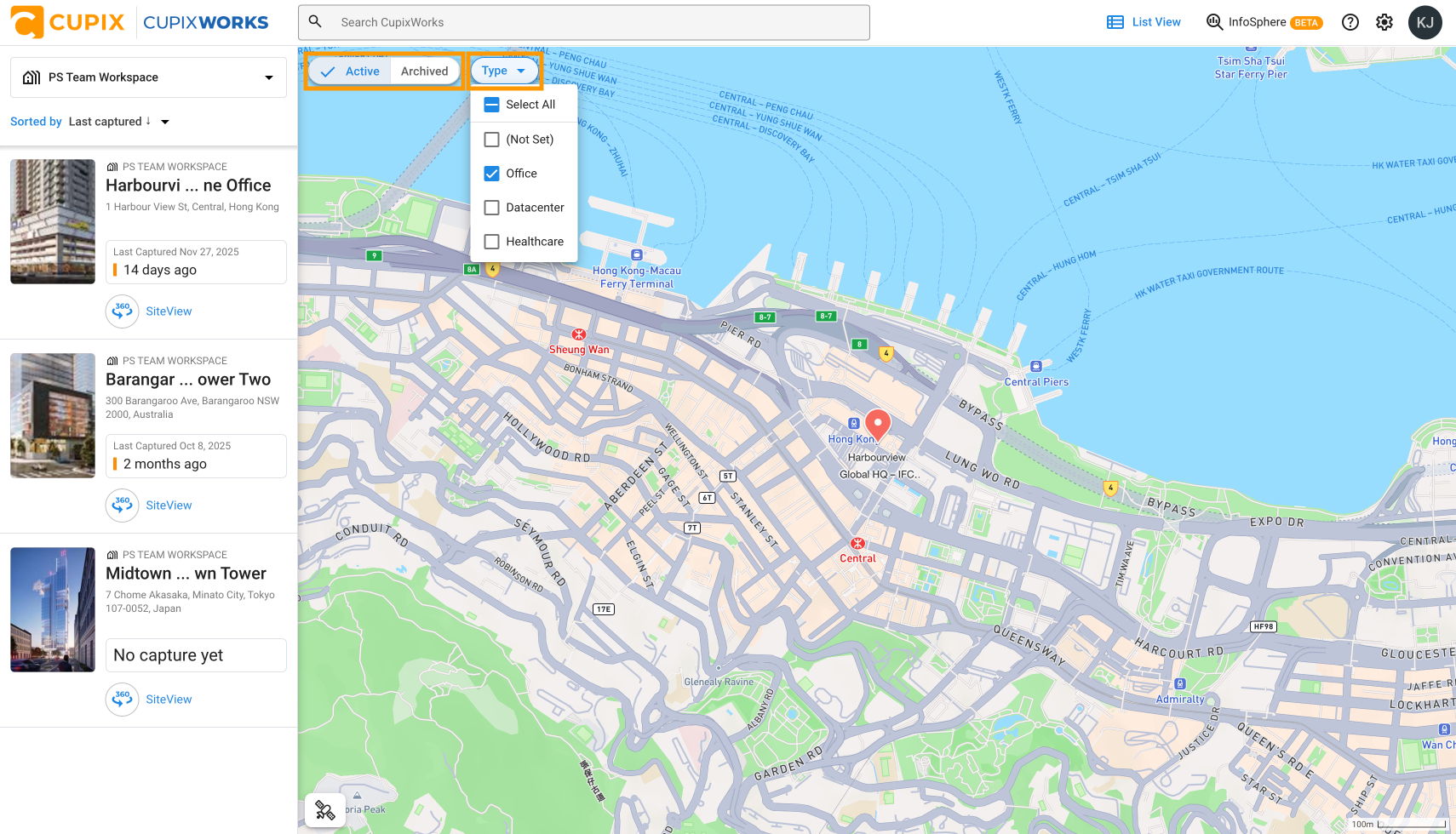

Map View

• In the Map View, Active/Archived projects and Project Types can be filtered using the controls in the top-left corner.
• To switch to the list view, click List View in the top bar.

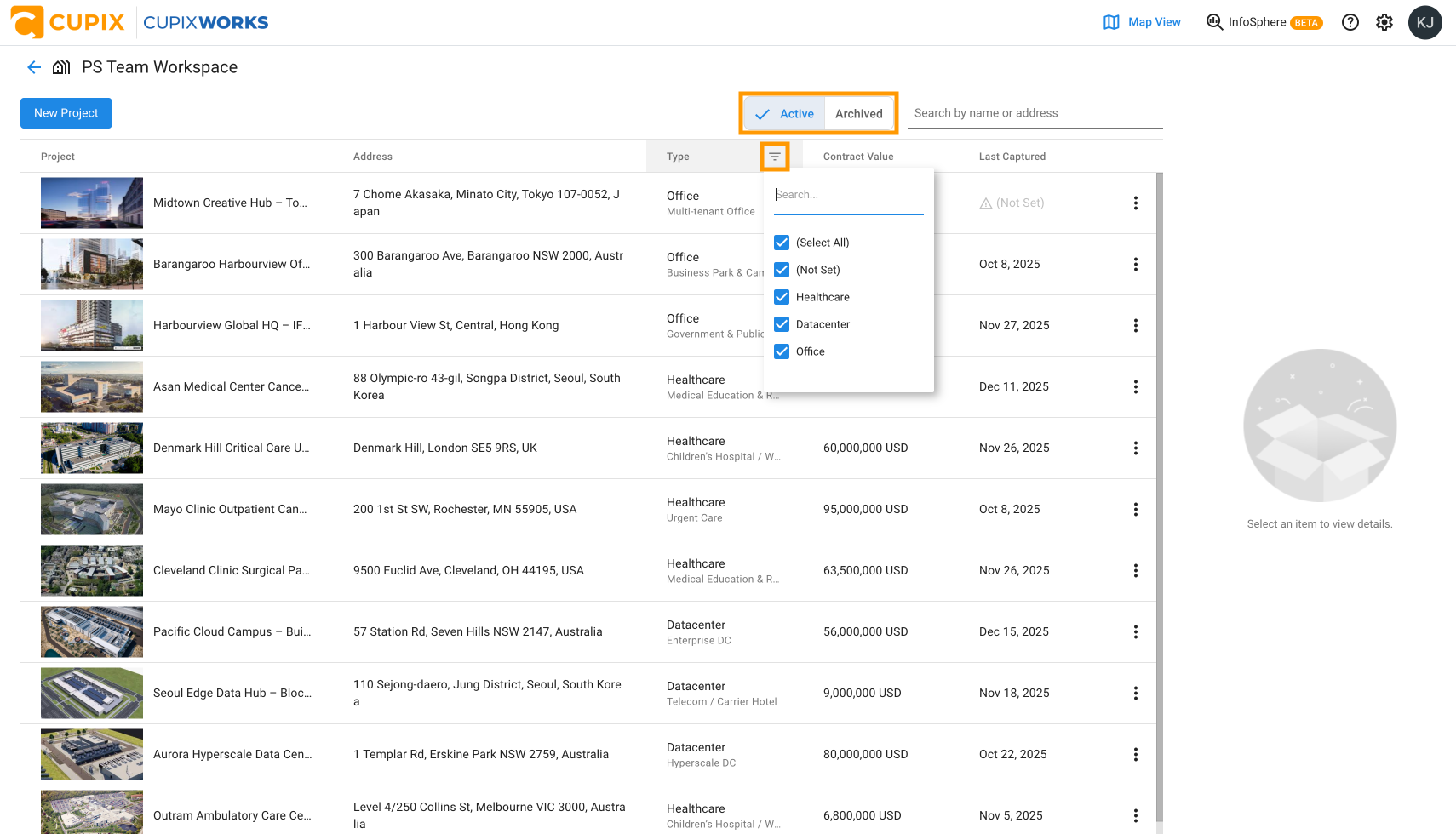

List View

Go to the Workspace under the Team to view all projects within that workspace.

• Project List fields include Project Name (with Thumbnail), Address, Type / Subtype, Contract Value, and Last Captured.
• Use the Active or Archived toggle at the top to control which projects are displayed.
• The Type column supports filtering via thefilter icon.

Note: If no project image is set, a map view preview is used as the default thumbnail.

Create a New Project

To create a project, click New Project in the top left of the Project List page and follow the step-by-step creation process.

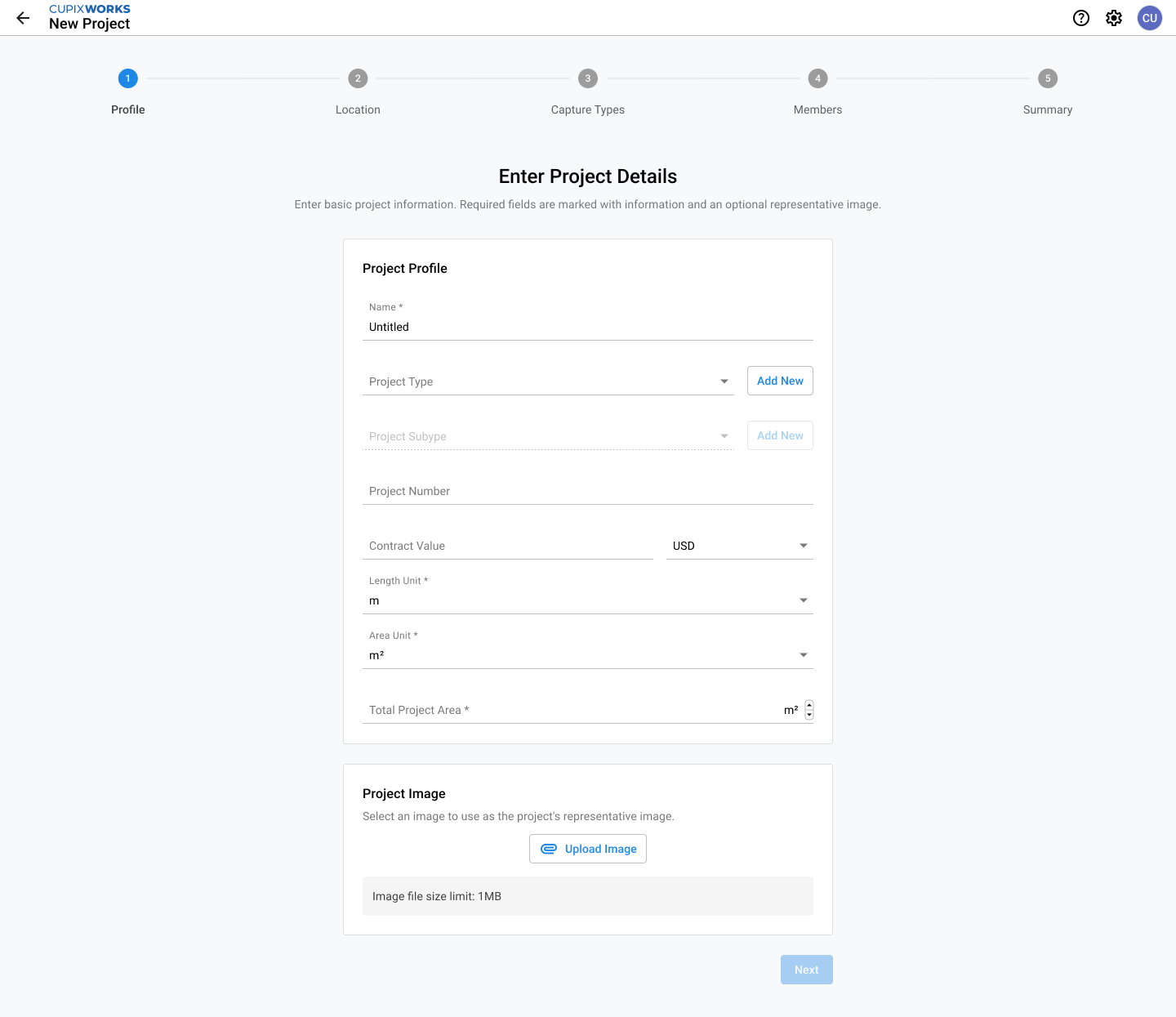

Step 1: Profile

• Project Name*

• Project Type / Subtype (select or add new)

  Note:

  • Team Admins can create a new type or subtype directly by clicking the + Add New button during project setup.
  • Refer to the Project Types article for guidance on creating new types or subtypes and managing existing ones.

• Project Number (optional)
• Contract Value (with currency selection) (optional)
• Length Unit and Area Unit*
• Total Project Area*
• Project Image (optional)

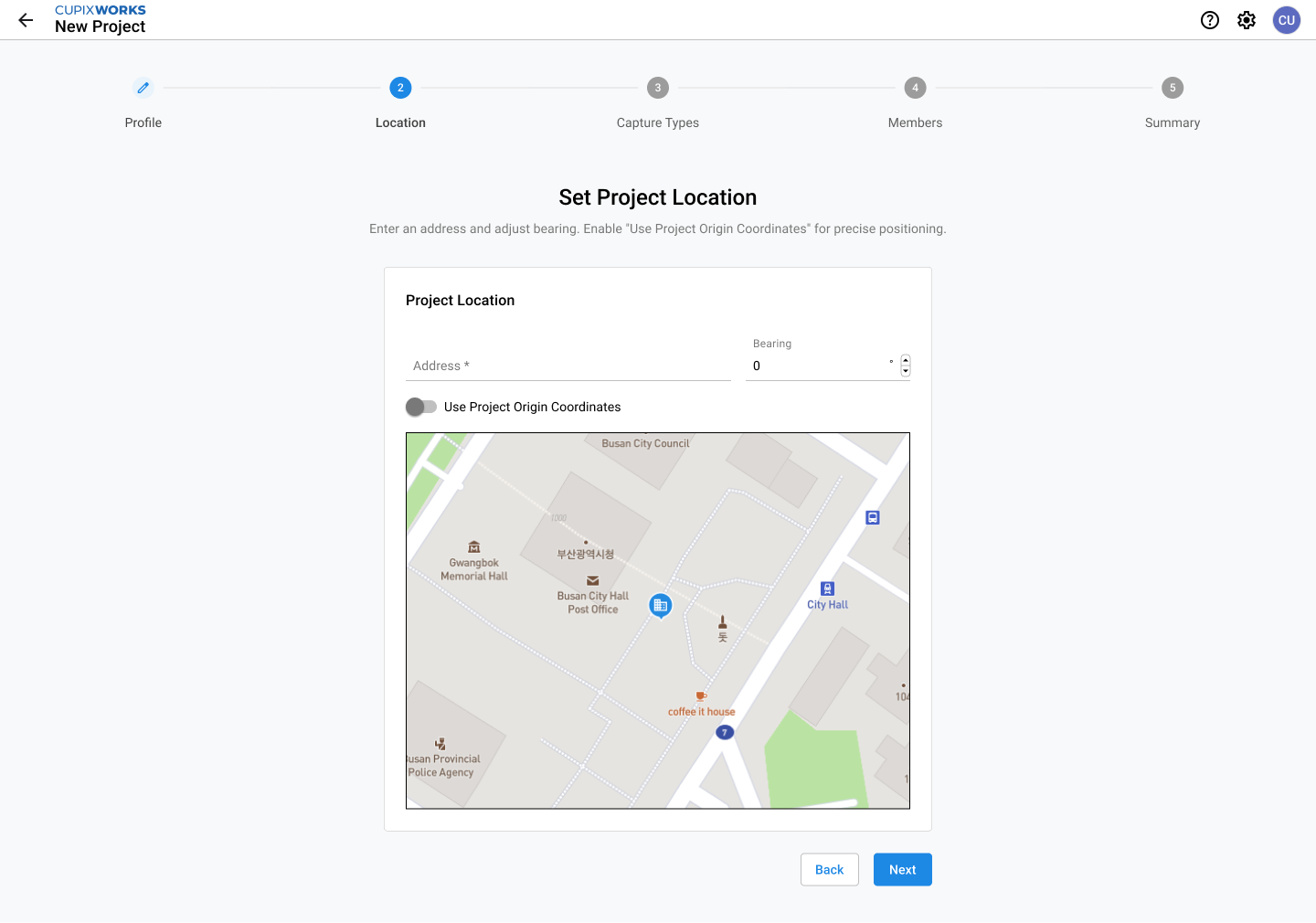

Step 2: Location

• Project Address*
• Bearing (optional)

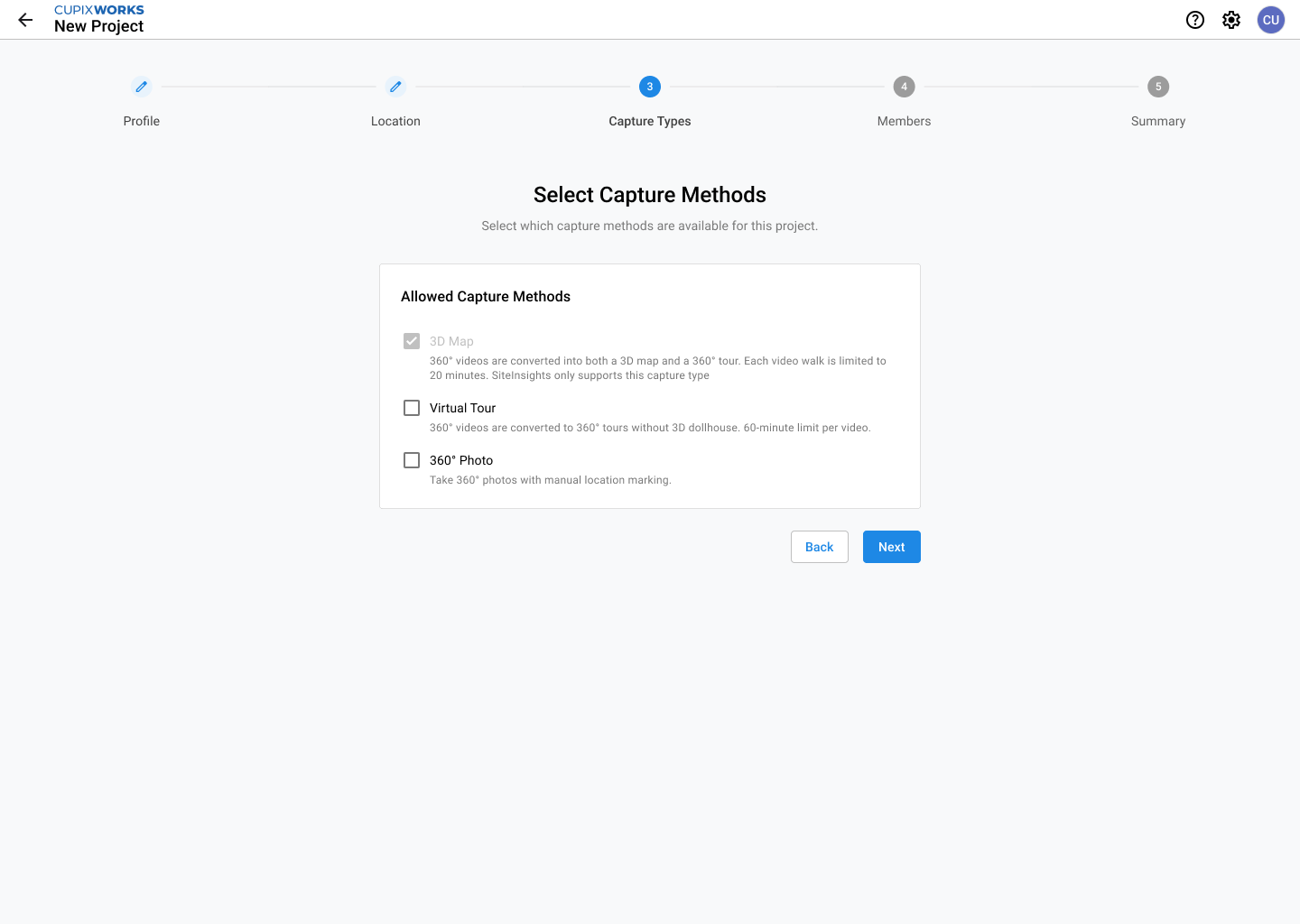

Step 3: Capture Types

Enable the capture types to be used in this project:

• 3D Map
• Virtual Tour
• 360° Photo

Note: At least one capture method must be enabled to proceed. Refer to the Capture Mode Overview article for details on each mode.

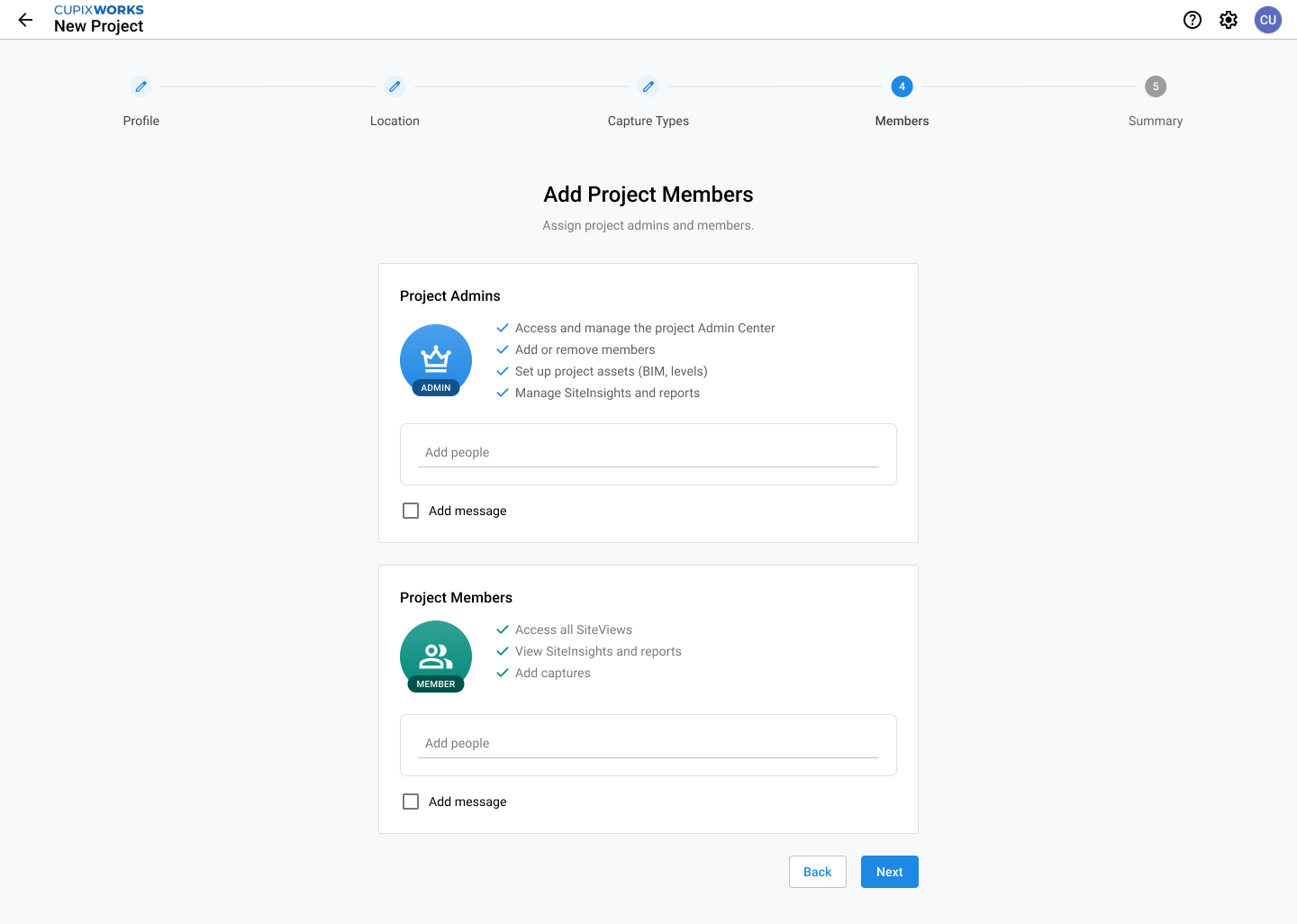

Step 4: Members

(Optional) Assign project admins or members by entering an email address or selecting a user group.

Note: Newly added Project Admins and Members will automatically receive a project invitation email.

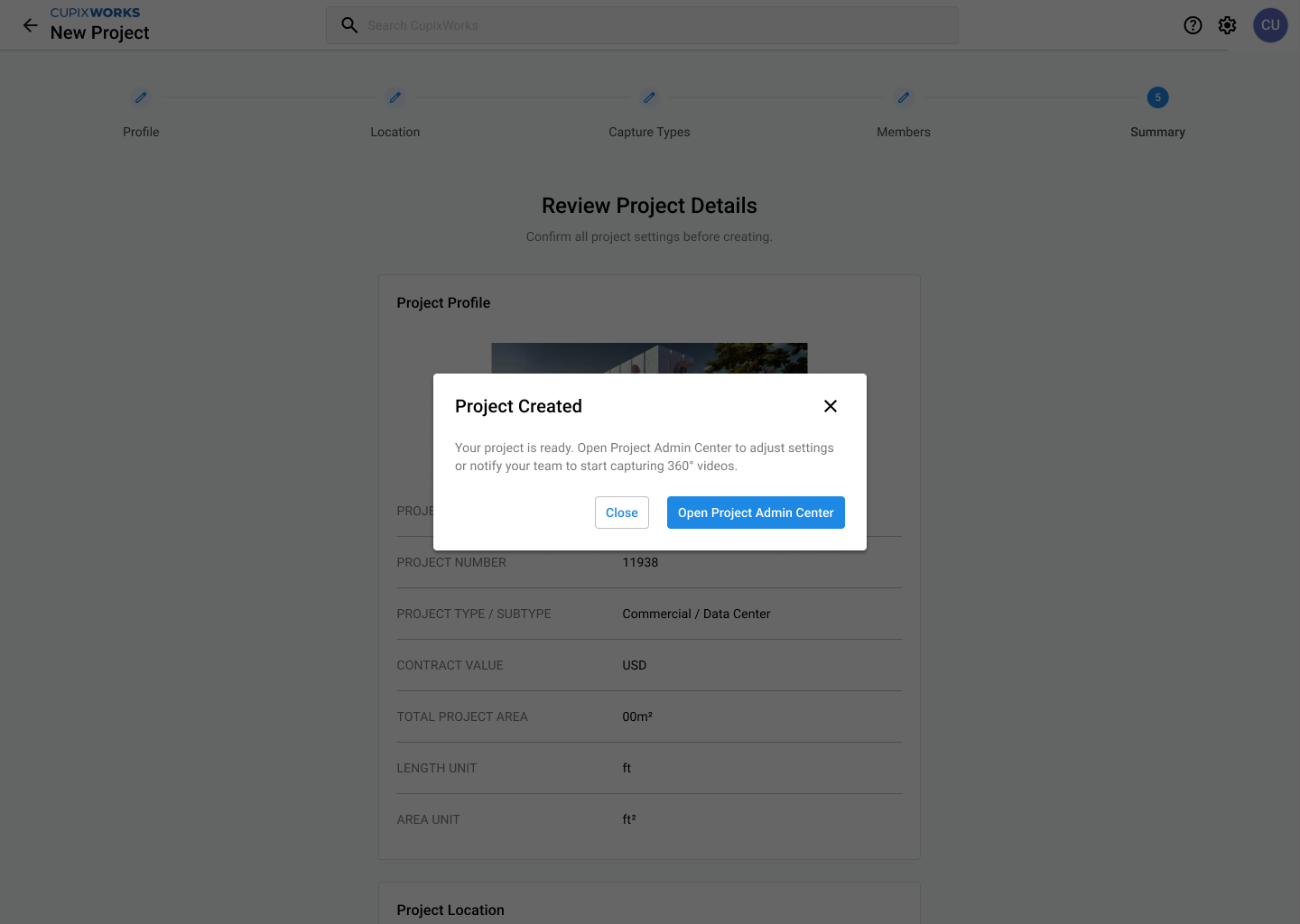

Step 5: Summary

Review all settings and click Done to complete. Click Close to return to the project list, or select Open Project Admin Center to navigate there.
